5um,0.5um,2um,Square Cap Large Steel, Shipyards, Foundries and Other Industries painting workshop dust filter cartridge

Place of Origin CHINA
Brand Name Air
Model Number Dust filter cartridge
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner poly bag,Outer cartons
Delivery Time around 2 weeks upon receipt signed&stamped PO
Payment Terms T/T(Negotiation)
Supply Ability around 30000pcs per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Efficiency 99.9% Dimension(L*W*H) 406*362*324*660mm
Material 100%Polyester Installation Side Loading
InnerCore Galvanized Mesh Application Area Steel Plate Pre-processing For Large-scale Shipyards Etc.
Design Easy To Replace
High Light

dust extractor filter cartridges

,

pleated filter cartridge

Leave a Message
Product Description

Square Cap Dust Filter Cartridge Square Flange Shot Blasting Filter Cartridges ​Description​:

Dust filter cartridge

Product Description

Item: Square Frange Shot Blasting Filter Cartridges

1) 100% Cellulose filter media;
2) 80% Cellulose+20% Polyester;
3) Nanoweb filter media;
4) Cellulose/ cellulose + fiber glass synthetic material;
5) 100% Synthetic filter media.

Specification:

S/N OD(mm) ID(mm) Filtration area(sqm) of HL Series

Filtration area(sqm) of

CE Series

Filter Media
1 180 98 3.5-6.0 6.9 Cellulose;
80%Cellulose+20%Polyester;
Domestic cellulose;
Cellulose substrate with PTFE coating;
Water&oil repellent treatment spunbonded polyerster;
Fluorine resin processing spunbonded polyester;
Spunbonded polyester;
Anti-static spunbonded polyester
2 213 122 4.5-8.5 9.5
3 240 135 6.0-11.0 12.3
4 280 170 7.7-14.5 16.5
5 300 190 8.0-16.0 17.4
6 325 215 8.8-18.2 21.0
6 350 240 8.8-19.2 23.0

Performance:

1) The top and bottom covers have plastic covers,iron covers and other materials;
2) Wide pleat spacing ,easy-cleaning design;
3) Specific gasket;
4) Unique plastic rotation,effectively separate the pleats,protect the filter media from abrasion by inner mesh;

5) Steel pre-processing filter cartridge;
6) Silo dust collector;
7) Optional no outer mesh;
8) Optional stainless steel mesh and end caps;

10) A variety of installation methods.

----------

Performance:

1) Wider pleat depth;
2) High filtration efficiency;
3) HV filter material;
4) Large air flow;
5) Top open, bottom open/ bottom closed with deflating bolt hole;
6) Galvanized stainless metal top cap;
7) Rubber gasket;
8) Filtration area:23 sqm.

Dust filter cartridge

Materials:

1. AR/PE Spun bonded polyester;
2. AR/AL Anti-static coating polyester;
3. AR/FD PTFE coating spun bonded polyester;
4. AR/FM PTFE membrane spun bonded polyester.

----------

Applications: Mainly used in central air conditioning, gas turbine power plants, oxygen plants, steel mill blast oxygen station, furnace blast air station, power plant etc. air intake filter.

Square Cap Large steel, shipyards, foundries and other industries painting workshop dust filter cartridge Show:



https://youtu.be/IV795B_37vU

https://www.youtube.com/watch?v=h7xUgYrQosA

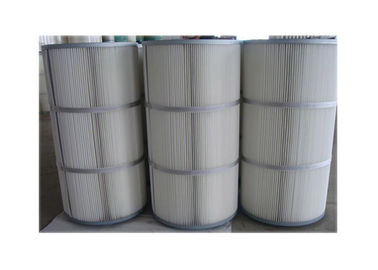

5um,0.5um,2um,Square Cap Large Steel, Shipyards, Foundries and Other Industries painting workshop dust filter cartridge 0
