GE 9FA.03 MODEL GAS TURBINE AIR FILTERS

Place of Origin CHINA
Brand Name AIR
Model Number Gas Turbine filters
Minimum Order Quantity negotiation
Price negotiation
Packaging Details Inner poly bag,Outer cartons
Delivery Time around 2 weeks upon receipt signed&stamped PO
Payment Terms T/T(negotiation)
Supply Ability around 30000pcs per year
Product Details
Efficiency 99.95%, 99.5% Filter Material Synthetic Fiber
Type Gas Turbine Inlet Air Filtration Filtration Grade F7-F9
Filter Name Conical & Cylindrical Filter Cartridge Porosity 0.4-2μm
Filtration Area 23.5㎡ Used For G.E Gas Turbine Can Be Used In Solar, Siemens, Alstom Gas Turbine
High Light

industrial air filter

,

gas in air filter

Leave a Message
Product Description

Cylindrical/Conical Gas Turbine Filters Replacement , Pharmaceutical Manufacturing Dust Collector Filter Cartridge

MFR. FAMFILL FARR, SWEDEN, SERIES TENKAY MARK IV, MODEL NO. STXL-282 PART # 125154-005

Description:
1. Filter material
Cellulose/cellulose+fiber glass synthetic material
Nano-web filter material
2. Performance description:
A. Wider pleat width
B. High filtration efficiency 99.99% at 0.5 M
C. Hv material: Hv nanoweb material(USA)
D. Large air flow
E. Top open, bottom open/ bottom close with deflating bolt hole
F. Galvanized stainless metal configuration
G. Rubber seal
H. We choose the three grade filtration fi the application field needs, and choose showerproof stepped flashing
Specification:

Model Shape O.D(mm) I.D(mm) Length(mm) Filter area(m2)
01 cylinder 324 213 559(22") 18
02 cylinder 324 213 660(26") 21
03 cylinder 324 213 700(27.5") 22.3
04 cylinder 324 213 735(29") 23.5
05a cylinder 408 293 875(34.5") 33.2
05b cylinder 408 293 559(22") 21.6
06(twist lock) cylinder 324 213 865(34") 25
01 cone 445-324 330-213 660(26") 23.3
02 cone 324-250 213-134 660(26") 16.4
03 cone 408-324 293-213 711(28") 23
04(twist lock) cone 408-324 293-213 925(36.6") 34.3
01(TenKay type) cylinder 324Top cap size:406×362 213 668(26.3") 22
(TenKay type) cylinder 324Top cap size:406×362 213 875(34.5") 28

Gas Turbine filters

Install position blast furnace, thus standing raw blower air machine, various raw materials of gas turbine,
Working system air conditioning filtration system,
Industry Machinery , metallurgy , petroleum , chemical , pharmaceutical , food industry .


 3. Application field:
The air intake filtration of gas turbines of ge, solar, Siemens, alstom, misubishi
Gas Turbine Air Intake Filter cartridges are modern and reliable for air intake applications. They ensure high efficient filtration of dust and other contaminants even in the most polluted environments. Normally these are made of mixture of polyester & cellulose and Nanofiber media. These media have much better pleat ability & dimensional stability. Pleated filter media offer high filtration efficiency, very fine retention level, easy clean ability & aesthetically good product than other normal filter media.
Features:
(1) Air Intake Cartridges for gas turbines and Air compressors are modern andReliable.
(2) The variety and range of materials and specifications make it possible to find suitable filter media for any Environmental conditions.
(3) The quality of the materials used ensure high performance standards.
Gas Turbine Air Inlet Filter Conical And Cylindrical Filter Cartridge Donaldson Gas Turbine Air Filter Replacement​ Installation:

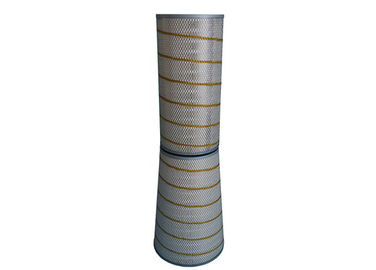

GE 9FA.03 MODEL GAS TURBINE AIR FILTERS 0
GE 9FA.03 MODEL GAS TURBINE AIR FILTERS 1
GE 9FA.03 MODEL GAS TURBINE AIR FILTERS 2
