5um,0.5um,2um,0.2um Powder Coating Spray Booth Recycling Pleated Filter Cartridge

Place of Origin CHINA
Brand Name Air
Model Number AR-PE3266Dust filter cartridge
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner poly bag,Outer cartons
Delivery Time around 2 weeks upon receipt signed&stamped PO
Payment Terms T/T(Negotiation)
Supply Ability around 30000pcs per year
Product Details
Efficiency 99.99% Medium Material Imported Long Fiber Polyester
Porosity 5μm Cartridge Filters Outer Diameter 7.93", 9.25", 12.74", 13.80", 14.68", 15.12", 16.00" (Conical), 16.67"
Product Name Powder Coating Spray Booth Recycling Filter Cartridge Filter Using Dust Collector
Inner&Outer Core Anti-Rust Galvanized Wire Airflow Rate 600~1000M3/h
Name Recycling Pleated Filter Cartridge
High Light

dust collector filter cartridge

,

dust extractor filter cartridges

Leave a Message
Product Description

​Cylindrical Type Pleated Filter Cartridge Powder coating Spray Booth Recycling Filter Cartridge

Product Description

Cylindrical Type Pleated Filter Cartridge For Dust Collector;
Media Types are :
1. Polyester
2. Antistatic Polyester (Carbon, Steel)
3. Polyphenylene Sulphide
4. Aramid
5. PTFE

Specification:

Dust filter cartridge

Model

Shape

OD(mm)

ID(mm)

Length(mm)

Filter Area(M2)

32600

Cylindrical

324

213

600(22)

18
213

3266

Cylindrical

324

213

660(26")

21

32700

Cylindrical

324

213

700(27.5")

22.3

32865

Cylindrical

324

213

865(34)

25
330-213

408F

Cylindrical

408

213

735(29")

23.5

408F

Cylindrical

408

293

559(22")

21.6

32865

Cylindrical

324

213

865(34")

25

445C

Conical

445-324

330-213

660(26")

23.3

324C

Conical

324-250

213-134

660(26")

16.4

408C

Conical

408-324

293-213

711(28")

23

408C

Conical

408-324

293-213

925(36.6")

34.3

406/324

Cylindrical

324Top cap size406×362

213

668(26.3)

22
213

406/324

Cylindrical

324Top cap size406×362

213

875(34.5")

28

Features:

(1) Suitable for the filtration of very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction industries And sticky dust collection.

(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.

(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.

(4) Excellent resistance to chemical erosion.

(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.

Other composition:
1. Gasket: Neoprene rubber, good at absolute hermetic seal, improving the durability
and life.
2. Inside cage: Galvanized steel, to prevent corrosion.
3. Molded top: Available in a varitety of styles and sizes to fit a wide range of Tubesheet Holes.
4. Molded bottom: Helps resist abrasive wear at the bottom of the elements.

Applications:
1. Description: Excellent performance on moist, hygroscopic, or agglomerative dust.
2 Marktets: Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical,cement, woodworking and etc.
3. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc.
4. Available for collectors: FT dust collector, Torit DFT
5. Substitute: Donaldson, Nodic, BHA



Notes:
1. Optional construction and dimensions are available on all cartridges.
2. Please contact us to make optimal filtration solutions of your applications.

Dust filter cartridge

https://youtu.be/IV795B_37vU

https://www.youtube.com/watch?v=h7xUgYrQosA

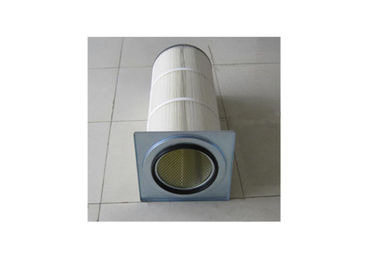

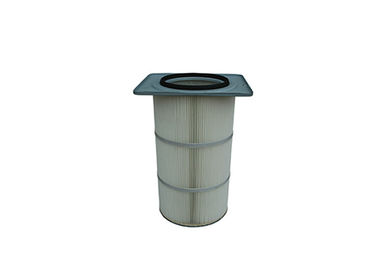

Powder coating Spray Booth Recycling Filter Cartridge filter Cylindrical Type Pleated Filter Cartridge​ show:

5um,0.5um,2um,0.2um Powder Coating Spray Booth Recycling Pleated Filter Cartridge 0
5um,0.5um,2um,0.2um Powder Coating Spray Booth Recycling Pleated Filter Cartridge 1
