Payment & Shipping Terms:
|Porosity:||5μm||Cartridge Filters Outer Diameter:||7.93", 9.25", 12.74", 13.80", 14.68", 15.12", 16.00" (Conical), 16.67"|
|Top/Bottom:||Galvanized Mesh||Installation:||Bottom Loading|
|Inner&Outer Core:||Galvanized Mesh||Airflow Rate:||600~1000M3/h|
|Name:||Cylindrical Type Pleated Dust Filter Cartridge|
Coal cell cartridge washable cartridge filter Industrial Cyclone Dust Collector Filter Cartridge Descriptions:
Dust filter cartridge
Spun bond media filter cartridge has very high filtration efficiencies on fine particulate, along with high resistance to abrasion and chemicals. This media provides superior dust cake release properties compared to paper media. Spun bond media is particularly suitable for pharmaceutical manufacturing, powder coating or fibrous materials such as wood or fiber glass.
Cylindrical Type Pleated Filter Cartridge For Dust Collector;
Media Types are :
2. Antistatic Polyester (Carbon, Steel)
3. Polyphenylene Sulphide
(1) Suitable for the filtration of very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction industries And sticky dust collection.
(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.
(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.
(4) Excellent resistance to chemical erosion.
(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.
Optional Filter Media:
1) Spunbonded polyester
2) Polyester + Oil and water repellent
3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)
4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )
5) Polyester + Flame retardant
6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)
We will choose the most suitable filter media according to customers' requirement
1. Base media: Spunbonded polyester
2. Operating efficiency: 99.9% on 1 micron
3. Washable: Several times
4. Maximum operating temperature: 200oF/93oC
5. Abrasion resistance: Excellent
6. Chemical tolerance: Excellent
7. Optional flame retardant media(FR): To order
1. Gasket: Neoprene rubber, good at absolute hermetic seal, improving the durability
2. Inside cage: Galvanized steel, to prevent corrosion.
3. Molded top: Available in a varitety of styles and sizes to fit a wide range of Tubesheet Holes.
4. Molded bottom: Helps resist abrasive wear at the bottom of the elements.
1. Description: Excellent performance on moist, hygroscopic, or agglomerative dust.
2 Marktets: Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical,cement, woodworking and etc.
3. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc.
4. Available for collectors: SFF/XLC, SFFK, Torit DFT
5. Substitute: Donaldson, Nodic, BHA
1. Optional construction and dimensions are available on all cartridges.
2. Please contact us to make optimal filtration solutions of your applications.

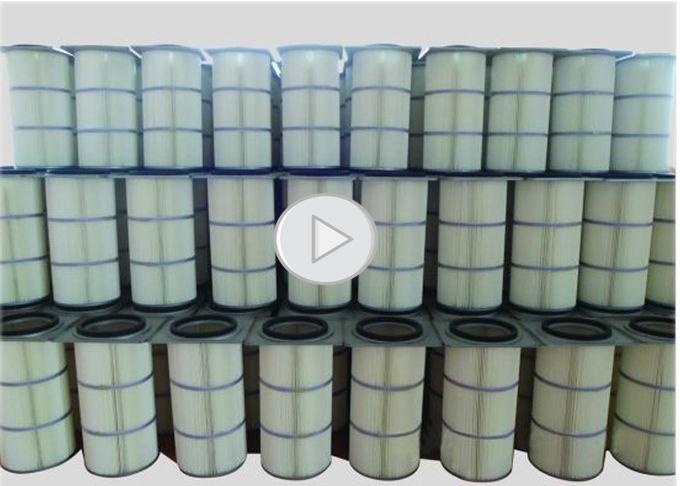

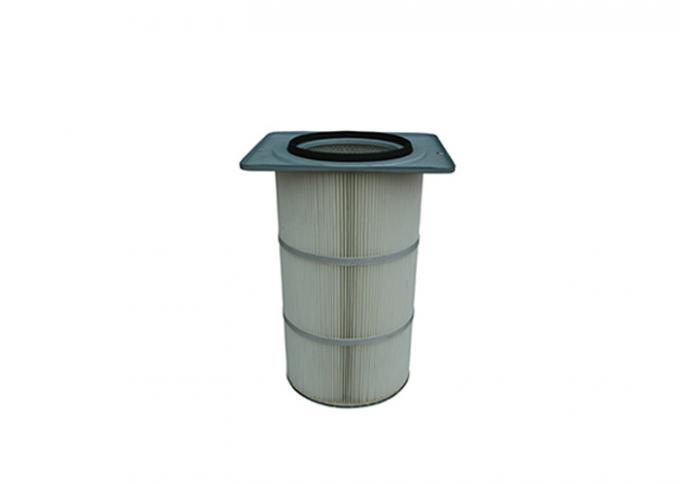

Coal cell cartridge washable cartridge filter dust collector filter Square end caps filter cartridge show:
