5um,0.5um,2um,0.2umWide Pleat Spacing Loaded Pleated Filter Cartridge Flange Steel Top
|Place of Origin||CHINA|
|Model Number||Dust filter cartridge|
|Minimum Order Quantity||negotiation|
|Packaging Details||Inner poly bag,Outer cartons|
|Delivery Time||around 2 weeks upon receipt signed&stamped PO|
|Supply Ability||around 30000pcs per year|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Install||Bottom Loading||Media||100% Polyester|
|Filtering Area||4.6m2||Name||Flange Steel Top Filter Cartridge|
dust collector filter cartridge,
pleated filter cartridge
Flange Steel Top Loaded Pulse Pleated Filter Cartridge Original WAM Filter Cartridge replace Polyurethane Top Cap Description:
high quality and performance pleated replacement flange-top style cylindrical cartridges offer a convenient alternative when replacement of the original cartridge is necessary. These flange-top style cylindrical cartridges are direct replacements and are exacting application fit and exceed oem performance. With galvanized end caps our cartridges our manufactured with optional Cellulose, 80/20 Polyester/Cellulose or Synthetic Media.
|Top cap||Galvanized steel|
|Snap ring||Needle felt|
|Inner mesh||Galvanized steel / stainless steel|
|Outside straps (optional)||High temp.Ryton|
|Bottom cap||Galvanized steel / stainless steel|
|Potting compound||High temperature polyurethane|
|Filter media||100% filament spinning spun bonded polyester|
|Continuous operating temp.||130 ℃|
Optional after treatment: PTFE, anti-static, waterproof and anti-oil treatment.
|Model||Cover Material||Tube Sheet H.D (mm)||Top Cover O.D (mm)||Bottom Cover O.D (mm)||Filtration Surface/1m (square meter)||Filtration Surface/2m (square meter)|
Spun bond media filter cartridge has very high filtration efficiencies on fine particulate, along with high resistance to abrasion and chemicals. This media provides superior dust cake release properties compared to paper media. Spun bond media is particularly suitable for pharmaceutical manufacturing, powder coating or fibrous materials such as wood or fiber glass.
(1) Suitable for the filtration of very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction industries And sticky dust collection.
(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.
(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.
(4) Excellent resistance to chemical erosion.
(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.
1. Base media: Spunbonded polyester
2. Operating efficiency: 99.9% on 1 micron
3. Washable: Several times
4. Maximum operating temperature: 200oF/93oC
5. Abrasion resistance: Excellent
6. Chemical tolerance: Excellent
7. Optional flame retardant media(FR): To order
1. Gasket: Neoprene rubber, good at absolute hermetic seal, improving the durability
2. Inside cage: Galvanized steel, to prevent corrosion.
3. Molded top: Available in a varitety of styles and sizes to fit a wide range of Tubesheet Holes.
4. Molded bottom: Helps resist abrasive wear at the bottom of the elements.
1. Description: Excellent performance on moist, hygroscopic, or agglomerative dust.
2 Marktets: Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical,cement, woodworking and etc.
3. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc.
4. Available for collectors: SFF/XLC, SFFK, Torit DFT
5. Substitute: , Nodic, BHA.
Dust filter cartridge

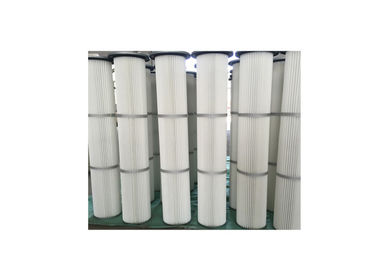

Flange Steel Top Loaded Pulse Pleated Filter Cartridge Original WAM Filter Cartridge replace Polyurethane Top Cap Show:
