5um,0.5um,2um,0.2um Quincuncial Dust Filter Cartridge High Temperature Resistant

Place of Origin CHINA
Brand Name AIR
Minimum Order Quantity negotiation
Price negotiation
Packaging Details Inner poly bag,Outer cartons
Delivery Time around 2 weeks upon receipt signed&stamped PO
Payment Terms T/T(negotiation)
Supply Ability around 30000pcs per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Filter Type Fold Working Temperature 130-150deg C
Feature High Dust Capacity Filtration Media PET+PTFE
Configuration Galvanized Stainless Metal IMetal Treatment Powder Spray Coating Metal/stai
Seal Rubber Seal Performance High Temperature Resistant,resistan
Name 324*660 Quincuncial Dust Filter Cartridge
High Light

dust collector filter cartridge

,

dust extractor filter cartridges

Leave a Message
Product Description

Dust Remove Polyester Pleated Air Filter Cartridge 324*660 Quincuncial End Cap Dust Collection Filter Cartridge​ description:

Dust filter cartridge

Product Features of Dust Collection Filter Cartridge :

1) Imported long fiber polyester filter media,fiber interwoven,evenly distributed.

2) Filter material surface do waterproof and oil processing.

3) Good abrasion resistance,and the capability of withstand airflow pulse inverse blow is better than traditional filter media.

4) Smooth filter media surface,not sticky.

5) Excellent chemical resistance.

6) Electro-galvanized / stainless steel cover, central skeleton.

7) Professional sealing obturator elastic neoprene.

8) Good filter material stiffness,can be repeated washed.

9) Operating temperature 135 ° C.

10) Greatly increase the effective filtration area.

11) Ensure a low steady differential pressure, improve the circulation of air flow.

12) Small filter cartridge element, easy to install.

13) Especially suitable for large dust concentration industry.

Dust filter cartridge

Model

Shape

OD(mm)

ID(mm)

Length(mm)

Filter Area(M2)

32600

Cylindrical

324

213

600(22)

18
213

3266

Cylindrical

324

213

660(26")

21

32700

Cylindrical

324

213

700(27.5")

22.3

32865

Cylindrical

324

213

865(34)

25
330-213

408F

Cylindrical

408

213

735(29")

23.5

408F

Cylindrical

408

293

559(22")

21.6

32865

Cylindrical

324

213

865(34")

25

445C

Conical

445-324

330-213

660(26")

23.3

324C

Conical

324-250

213-134

660(26")

16.4

408C

Conical

408-324

293-213

711(28")

23

408C

Conical

408-324

293-213

925(36.6")

34.3

406/324

Cylindrical

324Top cap size406×362

213

668(26.3)

22
213

406/324

Cylindrical

324Top cap size406×362

213

875(34.5")

28

Dust filter cartridge

This kind of dust catridge filter adopt imported antistatic polyester filter material, and it can effectively eliminate powder electrostatic, to prevent powder sticking.

It can be designed into taper shape so that dust is not easy to accumulate.

It has the strong backlash ability and is very durable.

It with the features of Acid Alkali Resistance, high and low temperature resistance,waterproof, and antistatic.

Generally the filter replacement time is 3500h, and replacing filter on time can increase the service life of equipment, reduce the pollution to the environment, reduce the harm to human body.



Performance description:

1.Suitable pleat width design for easy-cleaning

2.High filtration efficiency

3.Flame retardant processing

4.Top open ,bottom open /bottom close with deflating bolt hole

5.Galvanized stainless metal configuration

6.Rubber seal

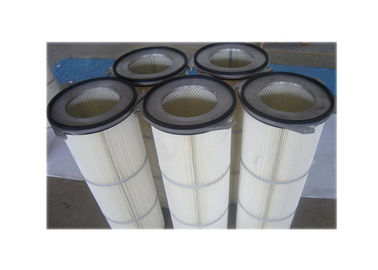

Dust Remove Polyester Pleated Air Filter Cartridge 324*660 Quincuncial End Cap Dust Collection Filter Cartridge Show:
