Self - Supported 5um Air Conditioner Filters Medium Filtration Grade 592x 592x 600 mm
| Place of Origin | CHINA |
|---|---|
| Brand Name | Air |
| Model Number | AR-PF |
| Minimum Order Quantity | negotiation |
| Price | negotiation |
| Packaging Details | Inner poly Outer carton |
| Delivery Time | around 2weeks upon receipt&stamped PO |
| Payment Terms | T/T(negotiation) |
| Supply Ability | around 30000 pcs per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimension(L*W*H) | 592x592x600mm | Medium Material | Synthetic Fiber |
|---|---|---|---|
| Filtration Grade | Medium Filter | Porosity | 5um |
| Filter Class | G4 | Frame | Aluminum/plastic Frame |
| Production | Self - Supported 5um Air Conditioner Filters | ||
| High Light | air conditioner air filter,hepa furnace filter |
||
Product Description
Secondary Efficiency sythetic media bag filter self-supported pocket description:
Applications:coarse and fine particle filtration
Type:multi-pocket filter
Frame:galvanized steel, aluminium or plastic
Filter media:progressively structured synthetic fiber
Gasket:EVA or none for plastic frame
EN 779 Class:G3－F8
Average arrestance:80%－99%(ASHRAE 52.1-1992)
MERV:MERV 5－14(ASHRAE 52.2-1999)
DIN 53438 Flammability:F1
UL 900 Standard:CLASS 2
Final pressure drop:(recommender) 250Pa(G3-F5)－400Pa(F6-F8)
Max. air flow rate:125% of nominal air flow rate
Max. operating temperature:100℃
Max. relative humidity:100%
Air conditional filters
| Class | Dust Spot Efficiency |
Dimensions | Filtering surface (m2) |
Rated air flow (m3/h) |
Initial pressure drop (Pa) |
||
| Length (mm) |
Height (mm) |
Depth (mm) |
|||||
| G3 | ≤20% | 592 | 592 | 600 | 4.68 | 3400 | 25 |
| G4 | 30-40% | 592 | 592 | 600 | 4.68 | 3400 | 35 |
| F5 | 40-60% | 592 | 592 | 600 | 4.68 | 3400 | 45 |
| F6 | 60-80% | 592 | 592 | 600 | 6.20 | 3400 | 60 |
| F7 | 80-90% | 592 | 592 | 600 | 6.20 | 3400 | 90 |
Air conditional filters
| Avg.efficienvy | Filter material color | Arrestance | Using |
| 30-35% | white | 92% | Pre-filter for the middle efficiency filter |
| 40-45% | orange | 96% | Commercial building, theater .station, airport |
| 60-65% | green | 97% | Automobile painting room, school, computer room |
| 80-85% | pink | 98% | Petrochemical industry, plastics industry , pharmaceutical factory, food products factory, paintting factory, electrical factory, hospitial, laboratory, dust-free room |
| 90-95% | yellow | 99% | Precise electronics industry, national defense factory, sterile room |
Pocket Medium Bag Filter
1.Large dust holding capacity
2.High efficiency
3.Long working life
4.F5-F8 efficiency
Features:
1. Collect 1 to 5 micron particles. Between each pocket has a metal stick to make frame more firm, and the separation material of each pocket can avoid the filter over expanded under the pressure.
2. Ultrasonic sealing make the filter more strong and not easy to broke
3. Adopt fine synthetic fiber instead of some fiberglass material
4. Material has antistatic fiber, large dust holding capacity and long working life.
5. Pocket mesh efficiency has five different type for choice: 45%, 65%, 85%, 95%, 98%.
6. Firm structure, large dust holding capacity, large air flow.
7. There are F8 (yellow,90-95%), F7 (Pink,80-85%), F6 (green, 60-65%), F5 (White,45-55%) available, with aluminum alloy, stainless steel or galvanized steel frame for selection.
8. Applicable in electronics, precision machinery, instruments, machinery, food and other industries and medium filtering for general air-conditioning ventilation systems.
Using
l Middle filtration for the air-condition, second-level filtration for the precise dust-free room,
l Pre-filtration for the high efficiency filter

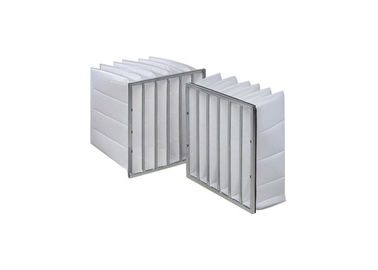

Secondary Efficiency sythetic media bag filter self-supported pocket Show:
