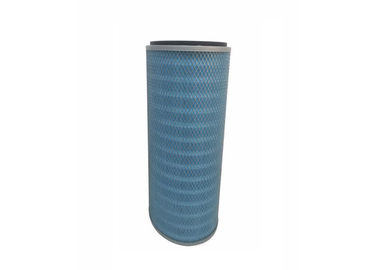

5um,0.5um,2um,0.2umWelding smoking dust filter cartridge oval shape dust filter cartridge

  • 5um,0.5um,2um,0.2umWelding smoking dust filter cartridge oval shape dust filter cartridge
  • 5um,0.5um,2um,0.2umWelding smoking dust filter cartridge oval shape dust filter cartridge
  • 5um,0.5um,2um,0.2umWelding smoking dust filter cartridge oval shape dust filter cartridge
  • 5um,0.5um,2um,0.2umWelding smoking dust filter cartridge oval shape dust filter cartridge
Place of Origin CHINA
Brand Name Air
Model Number AR-PE3266Dust filter cartridge
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner poly bag,Outer cartons
Delivery Time around 2 weeks upon receipt signed&stamped PO
Payment Terms T/T(Negotiation)
Supply Ability around 30000pcs per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
OD 365mm Media Nanofibers +Fire Retardant
Porosity 1μm Cartridge Filters Outer Diameter 7.93", 9.25", 12.74", 13.80", 14.68", 15.12", 16.00" (Conical), 16.67"
Top/Bottom Galvanized Mesh ID 288mm
Inner&Outer Core Galvanized Mesh Height 660mm
Name Welding Smoking Dust Filter Cartridge
High Light

dust extractor filter cartridges

,

pleated filter cartridge
Leave a Message
Product Description

Welding smoking dust filter cartridge oval shape dust filter cartridge ​Descriptions:

Performance Description:

#Application field:

Plasma, laser cutting, welding fume for vessel, large steel structure, automobile, metal processing.

Cartridge Model Filter MATERIAL Top end Cap OD mm Bottom end Cap OD mm Top end Cap ID mm Bolt hole mm Height mm Filtration area m2
3266 GW1A 324 324 213 14mm/-- 660 21
3566 GW1A 352 352 241 16mm/-- 660 23
3266 GWT226F4 324 324 213 14mm/-- 660 9.4
3566 GWT226F4 352 352 241 16mm/- 660 10.1



Dust filter cartridge

Filter Media Characterstics Application

NafiClear

Nanofiber w/

Cellulose substrate

#Standard Filter suitbale for most application;

#Max Temperature: 70 ℃ (160 ° F )

#Chemical resistance: average

#Oil resistance: average

#Water Resistance: average

#Fire resistance: optional

#CNC machining

#Flame cutting

#Laser cutting

#Powder metallurgy

#Plasma cutting

#Welding

NafiClear

Nanofiber w/

Polyester substrate

#For appliaction where high strength media and excellent release charactistics are necessary;

#Max Temperature: 90 ℃ (200° F )

#Chemical resistance: good

#Oil resistance: good

#Water Resistance: good

#Fire resistance: optional

#Sand blasting

#Surface Polishing

#Chemical

#Food

NafiClear

Nanofiber w/

Nomex substrate



Thermostable

#For appliaction where live sparks could enter the dust collectors ;

#Max Temperature: 150 ℃ (300 ° F )

#Chemical resistance: good

#Oil resistance: good

#Water Resistance: good

#Fire resistance: Exellent

#metallurgy

#Casting

#Chemical

#Cementt

#baking or Drying

NafiClear

Nanofiber



Oil resistance and

Water Resistance

#For appliaction where oil or water could enterthe dust collectors ;

#Max Temperature: 90 ℃ (200 ° F )

#Chemical resistance: good

#Oil resistance: Exellent

#Water Resistance: Exellent

#Fire resistance: optional

#Chemical

#Food

#Powder Painting

NafiClear

Nanofiber w/ anti-static substrate

#For appliaction where particles with static;

#Max Temperature: 90 ℃ (200 ° F )

#Chemical resistance: good

#Oil resistance: Exellent

#Water Resistance: Exellent

#Fire resistance: optional

#Sand blasting

#Surface Polishing

#Chemical

#Food



1. Flame Retardant Air Filter cartridge

Features of Standard construction:
Cellulose+ Flame retardant material
Polyester + flame retardant materials


Performance Description:
*Wider pleat width
*Flame retardant grade for EU Standard
*High filtration efficiency
*Galvanized stainless metal configuration
*Rubber seal


2. Oil & water Resistant Air Filter Cartridge

Features of Standard construction:
Polyetser+ water & oil proof

Performance Description:
Membrane on the surface of the filter material
Performance in oil, water resistance
Dust is hard to adhere the filter material
Much easier to self-clean
More times for water wash


3. Antistatic Air Filter Cartridge

Features of Standard construction:
Polyester Material+Al foil

Performance Description:
*Aluminum foil will be coated on the surface
on the polyester material permeability of the
filter material not easy to be destroyed
*Avoid the explode occurred by electrostatic spark
*Avoid the adhesion. Occurred by electrostatic


4.PTFE Membrane Air Filter Cartridge

Features of Standard construction:
Polyester Material+ PTFE membrane
Performance Description:
* Excellent surface
*Excellent ability of dust cake separation,enhance air flow, reduce operation resistance
*Extend life-span. Decrease the frequency of dust cleaning, save the cost of maintenance
*As material has good stiffness and membrane’s high filtration efficiency. Even filtration wind speed. The stability of the material is still excellent.
*Excellent water proof performance, also has a special performance in the moist environment.
*In the environment without oil and fire. The filter cartridge can get high filtration efficiency dispense with dust cake.

Wider pleat width

Superior high filter efficiency

Top open, bottom open/bottom close with deflating bolt hole

Special ability of flame retardant

Galvanized stainless metal configuration

Rubber seal

Selection of Material:

Polyester +PTFE membrane media

Nanofibers +Fire retardant

 Welding smoking dust filter cartridge oval shape dust filter cartridge Show:

 dust filter cartridge

https://youtu.be/IV795B_37vU

https://www.youtube.com/watch?v=h7xUgYrQosA

5um,0.5um,2um,0.2umWelding smoking dust filter cartridge oval shape dust filter cartridge 0

5um,0.5um,2um,0.2umWelding smoking dust filter cartridge oval shape dust filter cartridge 1

5um,0.5um,2um,0.2umWelding smoking dust filter cartridge oval shape dust filter cartridge 2
