Modular Combination Pulse Jet 2 Micron Cartridge Dust Collector

Place of Origin China
Brand Name AIR
Model Number Cartridge Dust Collector
Minimum Order Quantity negotiation
Price negotiation
Packaging Details Tray packaging
Delivery Time around 4 weeks upon receipt signed&stamped PO
Payment Terms T/T(negotiation,)
Supply Ability around 300 pcs per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Efficiency 99.99% Minimum Particle Size 0.5~2micron
Material Carbon Steel Or Stainless Steel Structure Industrial Cartridge Filter
Function Air Separation Inlet Filter Color Customers' Requirements
Name Dust Collector
High Light

Pulse Jet Cartridge Dust Collector


Modular Combination Cartridge Dust Collector


2 micron Cartridge Dust Collector

Leave a Message
Product Description


Pulse Jet Self-cleean Air Filter Air separation inlet filter description:

Performance Feature:

1) the air filter elements can be ground and automatically cleaned, while others run as usual work.

2) imported polyester fiber filter material,high moisture resistance, dust is hard to adhere to its surface;keep the self-cleaning filter in the running condition of low resistance.

3) high automation level, imported control componenet to enable unmanned operation.

4) air consumption of back blowing is low,generally 0.1~0.6m³/min(suction status).backblowing pressure is 0.4-0.6Mpa

5) reasonable design,no elbow design,high-rise modular combination,convenient and fast installation


Model Unit Monolayer series
    AR-ZJ-3600 AR-ZJ-4400 AR-ZJ-5600 AR-ZJ-7000 AR-ZJ-8000 AR-ZJ-11200
Rate volume of filtering air flow m³/min 3600 4400 5600 7000 8000 11200
Supporing fan air flow Nm³/min 1800 2250 2800 3500 4000 5800
Filter efficiency % 99.9
Filter precision um 1
Filter preliminary resistance Pa 150-200
Compressed air consumption Nm³/min 0.3-0.5
Filter cartridge count Pcs 114 178 224 272 320 448
dimension m 4.26*4.5*5.3 4.26*5.5*5.3 4.26*7.0*5.3 4.26*8.5*5.3 4.26*10.0*5.3 4.26*14*5.3

Cartridge Dust Collector

AR-ZJ series self-cleaning collector inhale ambient air. When the air passes through the cartridges, part of coarse dust particles settle to the bottom of the filter, owing to the action of gravity and inertia force. Fine grain size dust particles deposit on the surface of the cartridge filter by Brownian diffusion and interception combined effect of fiber. Purified gas is conveyed into the purified gas chamber, and then sent from the duct to the compressor.

Aerodynamic equipment which sucks dusty air will cause abnormal wear to the equipment. The dust suck will deposit on the surface of rotors, which will reduce the rotary balance accuracy of the equipment. Meanwhile, the downstream pipe equipment will be damaged due to corrosion. FZK pulse jet self-clean air inlet filter produced by Futai can solve the aforesaid problems. Therefore, FZK series computer-aided self-cleaning air filter is the essential auxiliary product for the filter at the air inlet of various compressors and draught fans.

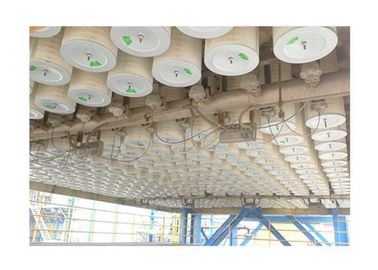

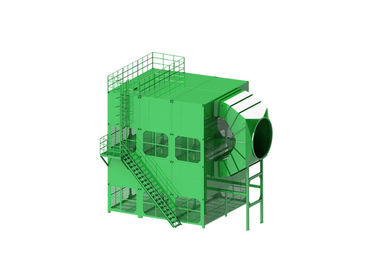

Pulse Jet Self-cleean Air Filter Air separation inlet filter Show:

Modular Combination Pulse Jet 2 Micron Cartridge Dust Collector 0Modular Combination Pulse Jet 2 Micron Cartridge Dust Collector 1
