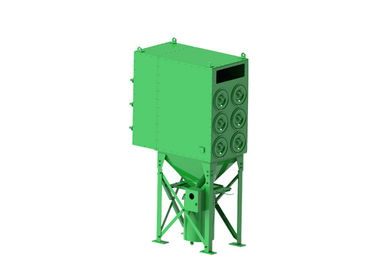

Modular Downflow Filter Cartridge Dust Collector Replacement Donaldson Torit Dry Filter Unit, Downflow Dust Collector

Modular Downflow Filter Cartridge Dust Collector  Replacement Donaldson Torit  Dry Filter Unit, Downflow Dust Collector
Modular Downflow Filter Cartridge Dust Collector  Replacement Donaldson Torit  Dry Filter Unit, Downflow Dust Collector Modular Downflow Filter Cartridge Dust Collector  Replacement Donaldson Torit  Dry Filter Unit, Downflow Dust Collector Modular Downflow Filter Cartridge Dust Collector  Replacement Donaldson Torit  Dry Filter Unit, Downflow Dust Collector Modular Downflow Filter Cartridge Dust Collector  Replacement Donaldson Torit  Dry Filter Unit, Downflow Dust Collector

Large Image :  Modular Downflow Filter Cartridge Dust Collector Replacement Donaldson Torit Dry Filter Unit, Downflow Dust Collector

Product Details:
Place of Origin: CHINA
Brand Name: AIER
Model Number: Cartridge Dust Collector
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Tray packaging
Delivery Time: Around 2 weeks upon receipt signed&stamped PO
Payment Terms: T/T
Supply Ability: Around 300 pcs per year

Modular Downflow Filter Cartridge Dust Collector Replacement Donaldson Torit Dry Filter Unit, Downflow Dust Collector

Description
Dimension(L*W*H): 1050mm/2080mm/4090mm Used: Burnishing Shot Blasting
Machine Type: Cartridge Dust Collector Material: SUS304 Or Q235 Carbon Steel
Feature: Critical Cleaning / Residue Free Air Volume: 8250-198000m3/h
Filtering Area: 417.6-7516.8㎡ Application: Cutting, Grinding, Welding, Polishing, Mixing Etc
High Light:

dust collection system

,

mechanical dust collector

Modular Downflow Filter Cartridge Dust Collector Replacement Donaldson Torit Dry Filter Unit, Downflow Dust Collector​ Description:



Overview:

AR-CH cartridge dust collector use filter cartridge as core element,and use pulse jet mode as dust clean method.this series of produces can be widely used for industrial dust control in shipbuilding,automobile,foundry,non-ferrous metals,tobacco,light industry,rubber,pharmaceutical and other industries.

For the different characteristics dust in a variety of industries, Aier Environmental designs a variety of forms and models of dust removal equipment to targeted treatment reference to the various characteristics of industrial dust.



Performance Feature

Unique down-flow type flow field design, conducive to cleaning the dust adhered to the filter cartridges

Modular structure, easy to combine the modular to meet the required air volume
Different filter cartridges can be selected according to the characteristics of dust-- oil water proof polyester filter cartridge, anti-static filter cartridge, flame proof filter cartridge , PTFE coated filter cartridge, to solve the problem of dust control.


Characteristic
Compact design, minimizes space.
Powerful performance, with Donaldson or BHA cartridge filter, saving 30% cleaning energy.
Cost saving,reduced filter costs, less energy consume.
Easy operation & maintenance
2-year warranty


Cartridge Dust Collector

Mainly model and technical parameters
Model
Air Volume
Filter
Filter
Filter
Initial resistance
L*W*H
G.W
No.
(m3/h)
Area (m2)
Cartridge
No.(pcs)
Efficiency
(Pa)
(mm)
(kgs)
AR-CH2-8
3300-7500
187
8
99.99%
125-250
3175*1016*2159
841
AR-CH3-12
5000-11000
280
12
99.99%
125-250
3632*1016*2159
968
AR-CH3-18
7500-16500
421
18
99.99%
125-250
3632*1016*2159
1295
AR-CH4-16
6600-15000
374
16
99.99%
125-250
4115*1016*2159
1164



Cartridge Dust Collector
1. Horizontally installed cartridges
2. High efficiency.
3. Material—carbon steel or stainless steel.
4. Block building structure, can be constructured to handle the required airflow.
5. Suitable air filter cartridges installed according to dust properties.
6. Completed with pulse jet valves and control systems.
AR Cartridge Dust Collector is suitable for shipbuilding,chemical,pharmaceutical,metal polishing processing, electronics, food processing, tobacco manufacturing,textile factory, glass fiber etc.It is widely used to clean heavy dust with ultra-fine dust up to 0.3um, the air dust removal up to 99.9%.

1) fits most standard tubesheet designs
2) easy installation and maintenance
3) requires less compressed air pressure to pulse clean
4) operated across a wide range of temperature and applications
5) increase filtration area 2-3 times
6) dramatically reduce air-to-cloth ratios
7) directly replacement for bags and cages
8) reduces operating pressure differential
9) substantially reduces installation time
10) shorter length keeps the elements out of the inlet gas stream, reducing abrasion.
