Compression Fitting Pulse Dust Collector Accessories Jet Diaphragm Baghouse Valve

Description
Structure: Diaphragm Pressure: High Pressure
Material: Casting, Aluminum Power: Solenoid
Temperature Of Media: Normal Temperature Media: Gas
High Light:

dust collection fittings

,

dust collection fittings accessories

Baghouse filter Solenoid operated pulse jet diaphragm valve Compression fitting pulse valve​ description:



The great operating-performance of compression fitting pulse valve reflects in: Sensitive and reliable signal, Low internal-resistance, Large gas-displacement, High airflow impact-force, Stable working, Long operating-life.



The technical characteristics of our valve:



1. Vacuum treatment for solenoid coil to eliminate harmful impurities, it makes the pilot work more sensative and reliable;



2. Orifice and unloading port match with the pulse valve, fast opening and closing, so it increases the blowing volume per unit time;



3. Membrane: Effective bonding and Sufficient tensile strength, Reliable sealing, Great anti-corrosion and anti-aging properties, we are the only company in China to use high-performance diaphragm so that it ensures long-term operation reliability. The company which provide us diaphragms also supply diaphragm to GOYEN and ASCO valve, it’s the same supplier. We guarantee at least 1millon times of service life(5 years).



4. We are using high-quality pressure spring to guarantee at least 1millon times of service life.



Technical parameters:



Connection port(G) 3/4", 1", 1 1/2"
DN (mm) 20mm,25mm, 40mm
Material of valve body aluminum
Working pressure 0.4---0.6Mpa (58Psi--87Psi)
Working medium clean air
Voltage DC24V/AC220V/50Hz)
Current 0.8A(0.05A)
Temperature -10.C--80.C (14.F--176.F)
The relative humidity of air no more than 85%
Diaphragm life: 1 million times(5 years)



Electromagnetic pulse valve model DCF-ZM-20
Connect the outer diameter of the vent tube(mm) Φ27

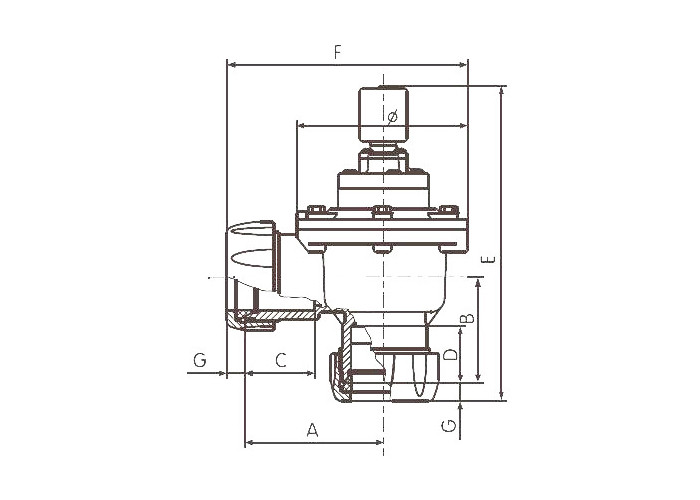

size(mm) A 67
B 45
C 26
D 26
E 162
F 118
G 12.7
φ 80



























Technical standard
Working pressure: 0.4 ~ 0.6MPa
Working medium: clean air
Voltage: DC24V, (AC220V / 50HZ)
Use of the environment:
① temperature: room temperature diaphragm -25 ° C ~ 85 ° C
High temperature diaphragm -25 ° C ~ 230 ° C
Low diaphragm -40 ° C ~ 80 ° C
② relative humidity of air no more than 85%
Protection: IP65
Diaphragm life: 5 years or 100 million times



Baghouse filter Solenoid operated pulse jet diaphragm valve Compression fitting pulse valve​ Show:

Compression Fitting Pulse Dust Collector Accessories Jet Diaphragm Baghouse Valve 0Compression Fitting Pulse Dust Collector Accessories Jet Diaphragm Baghouse Valve 1
