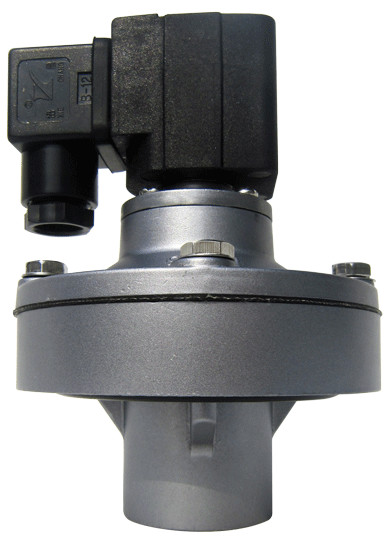

Full Immerse Diaphragm Pulse Dust Extraction Accessories Solenoid Pulse Valve

Full Immerse Diaphragm Pulse Dust Extraction Accessories  Solenoid Pulse Valve
Full Immerse Diaphragm Pulse Dust Extraction Accessories  Solenoid Pulse Valve
Full Immerse Diaphragm Pulse Dust Extraction Accessories  Solenoid Pulse Valve Full Immerse Diaphragm Pulse Dust Extraction Accessories  Solenoid Pulse Valve Full Immerse Diaphragm Pulse Dust Extraction Accessories  Solenoid Pulse Valve

Large Image :  Full Immerse Diaphragm Pulse Dust Extraction Accessories Solenoid Pulse Valve

Product Details:
Place of Origin: CHINA
Brand Name: Air
Model Number: AR-CB
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Tray or wooden frame packaging
Delivery Time: around 3weeks upon receipt&stamped PO
Payment Terms: T/T(negotiation)
Supply Ability: around 100000 pcs per year

Full Immerse Diaphragm Pulse Dust Extraction Accessories Solenoid Pulse Valve

Description
Structure: Diaphragm Pressure: High Pressure
Material: Casting, Aluminum Power: Solenoid
Temperature Of Media: Normal Temperature Media: Gas
High Light:

dust collection fittings

,

dust collector attachments

4inch tank mounted full immerse diaphragm pulse valve Immersion type solenoid pulse valve ​​ description:



The great operating-performance of 4inch full immerse dust collector mounted diaphragm solenoid valve DCF-Y-102B reflects in: Sensitive and reliable signal, Low internal-resistance, Large gas-displacement, High airflow impact-force, Stable working, Long operating-life.

The technical characteristics of our Pulse valve:



1. Vacuum treatment for solenoid coil to eliminate harmful impurities, it makes the pilot work more sensative and reliable;



2. Orifice and unloading port match with the pulse valve, fast opening and closing, so it increases the blowing volume per unit time;



3. Membrane: Effective bonding and Sufficient tensile strength, Reliable sealing, Great anti-corrosion and anti-aging properties, we are the only company in China to use high-performance diaphragm so that it ensures long-term operation reliability. The company which provide us diaphragms also supply diaphragm to GOYEN and ASCO valve, it’s the same supplier. We guarantee at least 1millon times of service life(5 years).



4. We are using high-quality pressure spring to guarantee at least 1millon times of service life.





Technical parameters:

Connection port(G) 4"
DN (mm) 102
Material of valve body aluminum
Working pressure 0.2---0.6Mpa (29Psi--87Psi)
Working medium clean air
Voltage DC24V/AC220V/50Hz)
Current 0.8A(0.05A)
Temperature -10. C--80. C (14. F--176. F)
The relative humidity of air no more than 85%
Diaphragm life 1 million times(5 years)



4inch tank mounted full immerse diaphragm pulse valve Immersion type solenoid pulse valve Show:

Full Immerse Diaphragm Pulse Dust Extraction Accessories  Solenoid Pulse Valve 0Full Immerse Diaphragm Pulse Dust Extraction Accessories  Solenoid Pulse Valve 1
