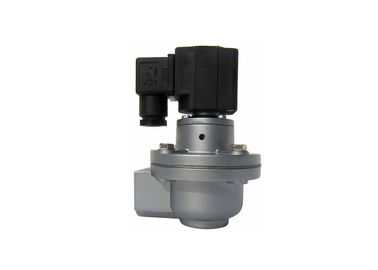

Dn20 3/4" Stainless Steel Dust Collector Accessories Thread Pulse Solenoid Valve

Dn20 3/4" Stainless Steel Dust Collector Accessories Thread Pulse Solenoid Valve
Dn20 3/4" Stainless Steel Dust Collector Accessories Thread Pulse Solenoid Valve
Dn20 3/4" Stainless Steel Dust Collector Accessories Thread Pulse Solenoid Valve Dn20 3/4" Stainless Steel Dust Collector Accessories Thread Pulse Solenoid Valve Dn20 3/4" Stainless Steel Dust Collector Accessories Thread Pulse Solenoid Valve

Large Image :  Dn20 3/4" Stainless Steel Dust Collector Accessories Thread Pulse Solenoid Valve

Product Details:
Place of Origin: CHINA
Brand Name: Air
Model Number: AR-CB
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Tray or wooden frame packaging
Delivery Time: around 3weeks upon receipt&stamped PO
Payment Terms: T/T(negotiation)
Supply Ability: around 100000 pcs per year

Dn20 3/4" Stainless Steel Dust Collector Accessories Thread Pulse Solenoid Valve

Description
Structure: Diaphragm Pressure: High Pressure
Material: Casting, Aluminum Power: Solenoid
Temperature Of Media: Normal Temperature Media: Gas
High Light:

dust collector attachments

,

dust collection fittings accessories

DN20 3/4" Stainless Steel Mesolow Normal Temperature Thread Pulse dust solenoid valve ​​description:



Range of use: Industrial dust removal equipment

Technique parameter:

The principle structure:Step piston type

Size:DN20~80

The ambient:-10~50°C,-30~35°C,-50~100°C

Control mode:morally open.normally close

Working voltage:AC380V,AC220V,AC127V,AC26V,AC24V

DC220V,DC110V,DC36V,DC24V,DC12V

Medium :water,oil,gas and so on.

The ambient:>-200°C,>-60°C,>-40°C,<+60°C, <+120°C,

<+200°C, <+350°C, <+450°C, <+500°C, <+600°C.

Pressure:0.03-0.6Mpa,0.03-1.6Mpa,0.03-2.5Mpa.0.03-4.0Mpa

Connection:angle of thread,submerged

Body material:aluminum alloy,stainless steel(304.316.316L)



Technical parameters:

Connection port(G) 4"
DN (mm) 102
Material of valve body aluminum
Working pressure 0.2---0.6Mpa (29Psi--87Psi)
Working medium clean air
Voltage DC24V/AC220V/50Hz)
Current 0.8A(0.05A)
Temperature -10. C--80. C (14. F--176. F)
The relative humidity of air no more than 85%
Diaphragm life 1 million times(5 years)



The great operating-performance of 4inch full immerse dust collector mounted diaphragm solenoid valve DCF-Y-102B reflects in: Sensitive and reliable signal, Low internal-resistance, Large gas-displacement, High airflow impact-force, Stable working, Long operating-life.

The technical characteristics of our Pulse valve:



1. Vacuum treatment for solenoid coil to eliminate harmful impurities, it makes the pilot work more sensative and reliable;



2. Orifice and unloading port match with the pulse valve, fast opening and closing, so it increases the blowing volume per unit time;



3. Membrane: Effective bonding and Sufficient tensile strength, Reliable sealing, Great anti-corrosion and anti-aging properties, we are the only company in China to use high-performance diaphragm so that it ensures long-term operation reliability. The company which provide us diaphragms also supply diaphragm to GOYEN and ASCO valve, it’s the same supplier. We guarantee at least 1millon times of service life(5 years).



4. We are using high-quality pressure spring to guarantee at least 1millon times of service life.



Model SMF-Z-15P SMF-Z-20P SMF-Z-25P SMF-1-35P SMF-Z-40S SMF-Z-50S SMF-Z-62S SMF-Z-76S
Wroof Pressure 0.3-0.8Mpa
Proof Pressure 1.0MPa
Temperature -5~60℃
Relative Temperature ≤80%
Medium Air
Voltage AC110V/AC220V/DC24V
Membrane Service Lift More than 1Million times
Inside Nominal Diameter(mm^2) Φ15 Φ20 Φ25 Φ35 Φ40 Φ50 Φ62 Φ76
Post Size G1/2 G3/4 G1 G1 1/2 G1 1/2 G2 G 1/2 G3
Material Body Aluminum Alloy
Seal NBR
Coil Power 20VA





DN20 3/4" Stainless Steel Mesolow Normal Temperature Thread Pulse dust solenoid valve​ Show:

Dn20 3/4" Stainless Steel Dust Collector Accessories Thread Pulse Solenoid Valve 0Dn20 3/4" Stainless Steel Dust Collector Accessories Thread Pulse Solenoid Valve 1
