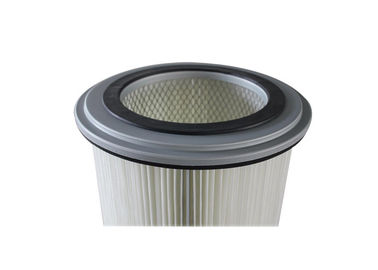

5um,0.5um,2um,0.2um Step flange end cap Masterbatch Plastic particles dust filter cartridge

Certification
China Zhangjiagang Aier Environmental Protection Engineering Co., Ltd. certification
China Zhangjiagang Aier Environmental Protection Engineering Co., Ltd. certification
Customer Reviews
Good product Good service Good price

—— Garry

Feedback on the information was timely. Although there was not much cooperation, we had a good experience from Shirley's services and products.

—— Marco

I'm Online Chat Now

5um,0.5um,2um,0.2um Step flange end cap Masterbatch Plastic particles dust filter cartridge

5um,0.5um,2um,0.2um Step flange end cap Masterbatch Plastic particles dust filter cartridge
5um,0.5um,2um,0.2um Step flange end cap Masterbatch Plastic particles dust filter cartridge
5um,0.5um,2um,0.2um Step flange end cap Masterbatch Plastic particles dust filter cartridge 5um,0.5um,2um,0.2um Step flange end cap Masterbatch Plastic particles dust filter cartridge 5um,0.5um,2um,0.2um Step flange end cap Masterbatch Plastic particles dust filter cartridge 5um,0.5um,2um,0.2um Step flange end cap Masterbatch Plastic particles dust filter cartridge

Large Image :  5um,0.5um,2um,0.2um Step flange end cap Masterbatch Plastic particles dust filter cartridge

Product Details:
Place of Origin: CHINA
Brand Name: Air
Model Number: AR-PE3266Dust filter cartridge
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Inner poly bag,Outer cartons
Delivery Time: around 2 weeks upon receipt signed&stamped PO
Payment Terms: T/T(Negotiation)
Supply Ability: around 30000pcs per year

5um,0.5um,2um,0.2um Step flange end cap Masterbatch Plastic particles dust filter cartridge

Description
OD: 335mm Media: Polyester
Porosity: 0.5μm~5μm Top/Bottom: Galvanized Mesh
Inner&Outer Core: Galvanized Mesh Height: 660mm
High Light:

dust extractor filter cartridges

,

pleated filter cartridge

Step flange end cap Masterbatch Plastic particles dust filter cartridge​ Description:



1. Flame Retardant Air Filter cartridge

Features of Standard construction:
Cellulose+ Flame retardant material
Polyester + flame retardant materials


Performance Description:
*Wider pleat width
*Flame retardant grade for EU Standard
*High filtration efficiency
*Galvanized stainless metal configuration
*Rubber seal


2. Oil & water Resistant Air Filter Cartridge

Features of Standard construction:
Polyetser+ water & oil proof

Performance Description:
Membrane on the surface of the filter material
Performance in oil, water resistance
Dust is hard to adhere the filter material
Much easier to self-clean
More times for water wash


3. Antistatic Air Filter Cartridge

Features of Standard construction:
Polyester Material+Al foil

Performance Description:
*Aluminum foil will be coated on the surface
on the polyester material permeability of the
filter material not easy to be destroyed
*Avoid the explode occurred by electrostatic spark
*Avoid the adhesion. Occurred by electrostatic


4.PTFE Membrane Air Filter Cartridge

Features of Standard construction:
Polyester Material+ PTFE membrane
Performance Description:
* Excellent surface
*Excellent ability of dust cake separation,enhance air flow, reduce operation resistance
*Extend life-span. Decrease the frequency of dust cleaning, save the cost of maintenance
*As material has good stiffness and membrane’s high filtration efficiency. Even filtration wind speed. The stability of the material is still excellent.
*Excellent water proof performance, also has a special performance in the moist environment.
*In the environment without oil and fire. The filter cartridge can get high filtration efficiency dispense with dust cake.

Dust filter cartridge

Wider pleat width

Superior high filter efficiency

Top open, bottom open/bottom close with deflating bolt hole

Special ability of flame retardant

Galvanized stainless metal configuration

Rubber seal

Selection of Material:

Polyester

Polyester +PTFE membrane media



#Application field:

Plasma, laser cutting, welding fume for vessel, large steel structure, automobile, metal processing.

Dust filter cartridge

Model O.D I.D Length Filtration surface(m2)
P3266 Φ324mm Φ213mm 660mm 9.4m2
P3566 Φ352mm Φ241mm 660mm 9.4m2
P3275 Φ324mm Φ213mm 750mm 10.7m2
P3288 Φ324mm Φ213mm 880mm 12.5m2
P3290 Φ324mm Φ213mm 915mm

13.0m2




Step flange end cap Masterbatch Plastic particles dust filter cartridge Show:
https://youtu.be/IV795B_37vU
https://www.youtube.com/watch?v=h7xUgYrQosA
