GE LM6000 Gas Turbine Air Filters Composite Air Filters LM6000 Gas Turbine
| Place of Origin | CHINA |
|---|---|
| Brand Name | AIER |
| Model Number | GE LM6000 Gas Turbine Filters |
| Minimum Order Quantity | NegotiNegotiationationNegotiation |
| Price | Negotiation |
| Packaging Details | Inner poly bag,Outer cartons |
| Delivery Time | Around 3 weeks upon receipt signed&stamped PO |
| Payment Terms | T/T |
| Supply Ability | Around 60000pcs per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Filter Type | Gas Turbine Air Inlet Filtration | Filter Outer/Inner Diameter | φ476mm*φ446mm*φ356mm*660mm |
|---|---|---|---|
| Filter Material | Synthetic Fiber 80% Cellulose+20%Synthetic Nano Fiber | Filtration Area | 21㎡ |
| Filter Class | F7-F9 | Gas Turbine Type | GE LM6000 |
| System Of Filtration | Pulse Cleaning Type | Operating Temperature | ≤80℃ |
| Filter Lifetime | 1-2 Years | Initial Pressure Drop | ≤300Pa |
| High Light | GE LM6000 Gas Turbine Air Filter,GE LM6000 gas turbine filter,21㎡ Gas Turbine Air Filter |
||
Product Description

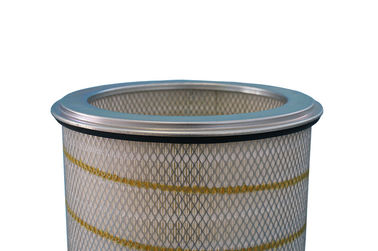

GE LM6000 Gas Turbine Filter Cartridge 476mm*446mm*356mm*660mm High Efficiency Cylindrical Type Air Filters
1. Filter Material
Synthetic Fiber
80% Cellulose+20%Synthetic
Nano Fiber
2. Performance description:
A. Wider pleat width
B. High filtration efficiency
C. Large air flow
D. Top open,bottom close
E. Galvanized stainless metal configuration
F. Rubber seal
G. Primary filter cotton
3.Dimension:
Top cap: OD476mm*446mm*ID356mmmm
Bottom cap: 445mm
Height:660mm
4. Application Field:
The air intake filtration of gas turbines of GE, Solar, Siemens, Alstom, Misubishi
5.To replace :
P190856
6.Features Of Standard Structure:
Composite fiber/composite fiber + glass fiber hybrid filter material
We have special gas turbine filter materials for different working conditions.
7.Product description:
1.Using the imported filter paper from United States, wood pulp fiber 80%+ polyester fiber 20%;
2.Can be better applied to reverse pulse blowing in the high humidity situation;
3.Large area design, guarantee the filtering air flow;
4.Inside and outside metal support, anti-rust galvanized end cover;
5.Special elastic rubber sealing ring.
Gas Turbine Air Intake Filter cartridges are modern and reliable for air intake applications. They ensure high efficient filtration of dust and other contaminants even in the most polluted environments. Normally these are made of mixture of polyester & cellulose and Nanofiber media. These media have much better pleat ability & dimensional stability. Pleated filter media offer high filtration efficiency, very fine retention level, easy clean ability & aesthetically good product than other normal filter media.
8.Features:
(1) Air Intake Cartridges for gas turbines and Air compressors are modern and Reliable.
(2) The variety and range of materials and specifications make it possible to find suitable filter media for any Environmental conditions.
(3) The quality of the materials used ensure high performance standards.
9.Size Details
| Cylindrical | |
| Large End OD | 476 mm (18.75”) |
| TOP CAP ID | 356mm(14") |
| Small End OD | 445 mm (17.5”) |
| Length | 660 mm (26”) |
GE LM6000 Gas Turbine Filter Cartridge 476mm*446mm*356mm*660mm High Efficiency Cylindrical Type Air Filters
