Grinding Machines Pulse filter cartridge Dust Collector Anti Explosive 99.99% Efficient

China Grinding Machines Pulse filter cartridge Dust Collector Anti Explosive 99.99% Efficient supplier
Grinding Machines Pulse filter cartridge Dust Collector Anti Explosive 99.99% Efficient supplier Grinding Machines Pulse filter cartridge Dust Collector Anti Explosive 99.99% Efficient supplier

Large Image :  Grinding Machines Pulse filter cartridge Dust Collector Anti Explosive 99.99% Efficient

Product Details:

Place of Origin: CHINA
Brand Name: AIR
Model Number: Cartridge Dust Collector

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Tray packaging
Delivery Time: around 2 weeks upon receipt signed&stamped PO
Payment Terms: T/T(negotiation)
Supply Ability: around 300 pcs per year
Contact Now
Detailed Product Description
Dimension(L*W*H): 1100*2200*3500mm Applications: Steel Garnet Shotblasting,Grain Plant
Installation Method: Horizontal Airflow Rate: 4500~10800M3/h
Filtration Speed: 0.5~1.2m/min Filtration Part: Cartridge Filter
Name: Cartridge Dust Collector

Grinding Machines Pulse Baghouse Dust Collector Anti Explosive 99.99% Efficient Description:

Cartridge Filter Working Principle

• Modular structure for easy system set up on site. The major components are already installed before delivery.
• Compact structure design to save expensive plant floor space
• Standard container shipping for cheapest freight cost
• Various cartridge filter media available for widest dust collection applications.
• Special designed panels between each layer of cartridges prevent dusts from upper cartridges falling to lower cartridges
• Longest filter life and highest filter efficiency
• Tool-free cartridge cover makes filter change-out a very easy and clean work

Cartridge Dust Collector

specfication:

Model

Airflow Rate

(M3/h)

Filter Area

(PET/Paper)M2

Cartridge No

(Pcs)

Operation Resistance

(Pa)

L*W*H

(mm)

G.W

(Kg)

AR-CH2-8
2250-6750

75/168

8













Initial Resistance 120-250 Normal operation resistance 500-700 Final Resistance 1000-1250

1010*1930*3335
841
AR-CH3-12
3360-8064

112/252

12

1010*1930*3790
1105
AR-CH3-18
5600-12000

170/378

18

3030*1930*3335
1373
AR-CH3-24
6750-16200

225/504

24

2020*1930*3790
1695
AR-CH3-36
10140-24336

338/756

36

3030*1930*3790
2377
AR-CH3-48
13530-32472

451/1008

48

4040*1930*3790
3136
AR-CH3-60
16920-40608

564/1260

60

5050*1930*3790
4027
AR-CH3-72
20280-48672

676/1512

72

6060*1930*3790
4391
AR-CH4-16
4500-10800

150/336

16

1010*1930*4245
1164
AR-CH4-32
9000-21600

300/672

32

2020*1930*4245
2032
AR-CH4-48
13530-32472

451/1008

48

1010*1930*3335
3136
AR-CH4-64
18030-43272

601/1344

64

3030*1930*4245
3700
AR-CH4-80
22560-54144

752/1680

80

5050*1930*4245
4623
AR-CH4-96
27060-64944

902/2016

96

6060*1930*4245
5518
AR-CH4-112
31560-75744

1062/2352

112

7070*1930*4245
6400
AR-CH4-128
36090-86616

1203/2688

128

8080*1930*4245
7273

After ash hopper in the dusty gas into the dust, because the air section sudden enlargement, part of the particles in gas thick dust particles under the action of gravity and inertia settling down, fine granularity and density of small dust particles into the filter chamber, by brown diffusion and sieve filter such as comprehensive effect, make the dust deposition on the surface of the filter material, after purification, the air chamber by the exhaust gas into the net by the fan discharge. The resistance of the cartridge filter increases with the increase of the thickness of the dust layer of the filter material. When the resistance reaches a certain value, the dust is carried out. The pulse controller controls the opening and closing of the electromagnetic pulse valve. When the pulse valve opens, the gas inside the package of the compressed air through the pulse valve through the holes on the spray torch injection of a high speed, high pressure ejector flow, thus forming a equivalent of ejector flow induced defects of airflow volume 1 ~ 2 times, into the cartridge together, make a momentary positive pressure inside the filter cartridge and generate ballooning and micro; The dust deposited on the filter material falls off and falls into the dust hopper. The dust in the dust hopper is discharged continuously through the unloader. The pulsed blast cleaning method is the sequential cleaning of the filter cartridge, and the pulse valve opens and closes with one pulse motion, the time required is 0.1-0.2s. The time interval of the pulse valve is 1~ 2min, and the time of the full filter is 10~ 30min. Due to the low pressure pulse clearance of the equipment, the spraying time should be lengthened appropriately according to the resistance of the equipment, and the spraying interval and blowout cycle should be shortened appropriately.

Cartridge Dust Collector

AAF cartridge dust collectors utilize high efficiency cartridge filters to provide effective collection of a broad range of dust particles and contaminates, such as wood, composites, plastic, dry powder, metals, toner, and cement. Operations include grinding, sanding, foundry, welding, fabrication, blasting, metalizing, and powder coating. The BND Dust Collector is designed for customization to unique applications. It is available in configurations of variable dimensions, number of cartridges, and optional features to effectively clean particulates ranging in type, size, and loading amount.

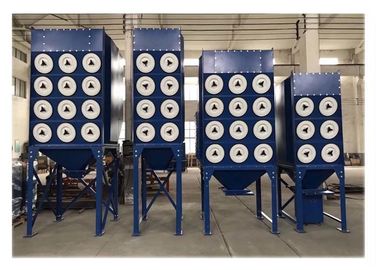

99.99% Efficient Anti Explosive Dust Collector Flammable Dust Show:
Grinding Machines Pulse filter cartridge Dust Collector Anti Explosive 99.99% EfficientGrinding Machines Pulse filter cartridge Dust Collector Anti Explosive 99.99% Efficient
