Bin Roof Cement Cartridge Dust Collector , Dust Collection System Easy Operation
| Place of Origin | CHINA |
|---|---|
| Brand Name | AIR |
| Model Number | Cartridge Dust Collector |
| Minimum Order Quantity | negotiation |
| Price | negotiation |
| Packaging Details | Tray packaging |
| Delivery Time | around 2 weeks upon receipt signed&stamped PO |
| Payment Terms | T/T(negotiation) |
| Supply Ability | around 300 pcs per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Air Flow | 750~1500 | Model Number | Downflow Dust Collector AR-CD |
|---|---|---|---|
| Installation Method | Horizontal | Diameter | 2000mm~2500mm |
| Applications | Pneumatic Conveying | Filtration Speed | 0.5~1.2m/min |
| Filter Efficiency | 0.5micron99.99% | Filtration Part | Filter Bag |
| Advantages | Easy Installation And Operation | Filter Area | 24-84m2 |
| Name | Bin Roof Cement Cartridge Dust Collector | ||
| High Light | dust collection system,mechanical dust collector |
||
Product Description
Bin Roof Cement Cartridge Dust Collector , Dust Collection System Easy Operation Description:
Technical Features:
1. Using the pulse jet cleaning method, with good cleaning effect, high treatment efficiency;
2. Large air volume, long life filter bag, small maintenance workload;
3. Electronically controlled automatic control, easy operation, reliable performance;
4. Simple disassembly and assembly of the filter bag, good sealing performance;
5. Small footprint, low investment, good effect.
Cartridge Dust Collector
| Performance parameter | Model | |||||||
| AR-32 | AR-48 | AR-64 | AR-80 | AR-96 | AR-112 | |||
Air volume/m³·h-1 |
1500-2100 | 2100-3200 | 2900-4300 | 4000-6000 | 5200-7000 | 6000-9000 | ||
| Filter area/m² | 24 | 36 | 48 | 60 | 72 | 84 | ||
| Filtration velocity m/min | 1.00-1.50 | 1.00-1.50 | 1.00-1.50 | 1.10-1.70 | 1.20-1.70 | 1.20-1.80 | ||
| Qty. of the filter bag | 32 | 48 | 64 | 80 | 96 | 112 | ||
| Inlet gas temperature/℃ | ≤120 | |||||||
| Resistance/pa | ≤1200 | |||||||
| Inlet dust concentration/g·m³ | <200 | |||||||
| Outlet concentration/mg·m3 | ≤50 | |||||||
| Air compression | pressure/MPa | 0.5-0.7 | ||||||
| gas consumption/m³·min | 0.1 | 0.14 | 0.2 | 0.24 | 0.29 | 0.34 | ||
| Under negative pressure | 5000 | |||||||
| Qty. of pulse valve | 4 | 6 | 8 | 10 | 12 | 14 | ||
| Draught fan | model | 4-68-3.15A | 4-72-3.6A | 4-72-3.6A | 4-72-4A | 4-72-4A | 4-72-4.5A | |
| mating electric machine | model | Y90S-2 | Y100L-2 | Y100L-2 | Y132S1-2 | Y132S1-2 | Y132S2-2 | |
| power/kw | 1.5 | 3 | 3 | 5.5 | 5.5 | 7.5 | ||
| Weight/kg | A(with dust hopper) | 1350 | 1620 | 1850 | 2360 | 2800 | 3200 | |
| B(without dust hopper) | 1220 | 1470 | 1670 | 2150 | 2540 |
2880 |
||
Pormance Feature:
small volume,small footprint,effectively save the space;
low running resistance,significant energy saving;
adjustable pulse back blow,pressure difference display;
according to site condition,adopt different installation methods of filting component.
Gas Turbine filters
Performance characteristics:
1. Use a pipeline and a butterfly valve to integrate the dust removal system of the roof and the main unit into one. Flexible placement, can be placed in a designated location as needed. Placed on the host port, recycled materials directly discharged into the mixing port. No manual collection is required. Easy to maintain.
2. The control of the pneumatic butterfly valve can be used for the powder tank alone or for the host. Can also be used at the same time. high working efficiency.
3, the use of pulsed blower cleaning technology, the use of pulse control instrument timing control, can be fully automatic operation, the use of polyester film needle felt filter material, high filtration efficiency, equipment resistance, delay the life of the bag.
1. Use a pipeline and a butterfly valve to integrate the dust removal system of the roof and the main unit into one. Flexible placement, can be placed in a designated location as needed. Placed on the host port, recycled materials directly discharged into the mixing port. No manual collection is required. Easy to maintain.
2. The control of the pneumatic butterfly valve can be used for the powder tank alone or for the host. Can also be used at the same time. high working efficiency.
3, the use of pulsed blower cleaning technology, the use of pulse control instrument timing control, can be fully automatic operation, the use of polyester film needle felt filter material, high filtration efficiency, equipment resistance, delay the life of the bag.
AR-CD bin roof dust collector is used as exhaust equipment of stock bin, it is mainly used in material conveying system suchas belt conveyor system and pneumatic conveying system of the industries of mining,
metallurgy, building materials, machinery,chemical,food processing industries with belt conveyor system,pneumatic conveying system ,etc.conveying system,etc.
Gas Turbine filters
type single pulse bag filter housing is our company digestion and absorption of the advantages of similar products at home and abroad. After improved design, this small bag type dust collector uses pulse jet dust cleaning, with advantages of good cleaning effect, high purification efficiency, large air volume, long life filter bag, small maintenance workload, safe and reliable operation. It is widely used in metallurgy, building materials, machinery, chemical, mining, and other industrial and mining enterprises and non-fibrous dust of industrial dust purification and recycling of materials.
Packing and Shipping:
1. Dust Collector will be packed after test.
2. Electric control cabinet: all is packed by wooded box, save sealing, rain-proof, sho
ck-proof.
3. Main part and relative valves, instrument: wooden box packed, rain-proof.
4. Will be marked on per part with the regulations on goods.
5. Steel parts will be loaded into container directly.

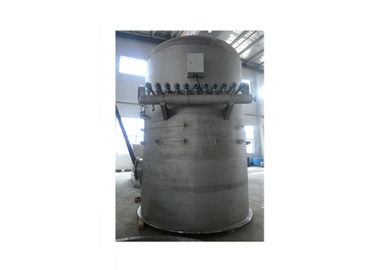

Bin roof dust collector Easy Operation Horizontal Bag Dust Collector cement bin dust collector Show:
