High Dust Concentration Panel Air Filter Washable , Polyester Filter Cartridge Convenient Installation

Place of Origin CHINA
Brand Name Air
Model Number AR-FCF
Minimum Order Quantity negotiation
Price negotiation
Packaging Details Inner poly bag, Outer cartons
Delivery Time around 4weeks upon receipt signed&stamped PO
Payment Terms T/T(negotiation)
Supply Ability around 50000pcs per year
Product Details
Filter Media PU + Polyester Construction Flat Filter
Work Temp 80-130 Degree C Porosity 5μm
Dimension(L*W*H) (L)460*(W)83 Mm / (L)18.11*(W)3.27inch Frame Material Polyurethane
Name High Dust Concentration Panel Air Filter Washable
High Light

panel air filter

,

plant filter cartridge

Leave a Message
Product Description

High dust concentration plants flat panel air filter cartridge Flat Filter elements​ description:


Flat filter makes it possible to design small compact filter system and still get the optimal air filtration. Air filtration can be further optimized by selecting the right filter media for your specific dust type. We have a number of quality filter media to ensure max. options when it comes to removing your particular dust type.


FILTER MEDIA

DESCRIPTION SPECIFICATION CHEMICAL PROPERTIES
Material Post-processing

Weight

gram/m2

Thickness

mm

Max Temp.

°C

Perme-ability

Oil water

proof

Water

proof

Acid Alkali
20%polyester+80%cellulose   130 0.64 80 ** * * * *
15%polyester+85%cellulose   124 0.7 80 ** * * * *
100%cellulose   118 0.79 80 ** - - * *
15%polyester+85%cellulose Nano flame retardant 137 0.79 80 *** *** * * *
15%polyester+85%cellulose Nano 132 0.84 80 *** ** * * *
100%polyester   240 0.75 120 ** ** * * *
100%polyester   260 0.61 120 ** ** * ** *
100%polyester Anti-static 260 0.61 120 ** ** - ** *
100%polyester Flame-retardant 260 0.61 120 ** ** ** ** *
100%polyester Oil,water proof 260 0.61 120 *** *** *** ** *
100%polyester PTFE Membrane 240 0.60 120 * - *** ** **
100%polyester PTFE Membrane 260 0.68 120 * - *** ** **
100%polyester PTFE Membrane FR 260 0.62 120 * - *** ** **
100%polyester PTFE Membrane 270 0.83 135 * - *** ** **
100%polyester Anti-static PTFE Membrane 260 1.01 135 * - *** ** **
100%polyester New PTFE Membrane 135 0.58 110 * - *** ** **

- No, * Ordinary, ** Good, *** Very good

Performance Description of Flat Filter Element

Flat filter element makes it possible to design small compact filter system and still get the optimal

air filtration. Air filtration can be further optimized by selecting the right filter media for your specific

dust type. We have a number of quality filter media to ensure maximum options when it comes to

removing your particular dust type.



Features of Flat Filter Element

  • Filter Area: Increased by 200% filter area
  • Pleat Design: Easy to clean the dust
  • Strong burst resistance
  • Convenient in installation and discharge

  • Washable

  • Make the best use of the filter area

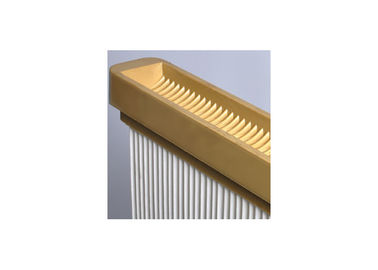

High dust concentration plants flat panel air filter cartridge Flat Filter elements Show:

High Dust Concentration Panel Air Filter Washable , Polyester Filter Cartridge Convenient Installation 0High Dust Concentration Panel Air Filter Washable , Polyester Filter Cartridge Convenient Installation 1
