Hydrophobic PTFE Industrial Water Filter Pleated Glass Fiber 10~50 Inch Long

Certification
China Zhangjiagang Aier Environmental Protection Engineering Co., Ltd. certification
China Zhangjiagang Aier Environmental Protection Engineering Co., Ltd. certification
Customer Reviews
Good product Good service Good price

—— Garry

Feedback on the information was timely. Although there was not much cooperation, we had a good experience from Shirley's services and products.

—— Marco

I'm Online Chat Now

Hydrophobic PTFE Industrial Water Filter Pleated Glass Fiber 10~50 Inch Long

Hydrophobic PTFE Industrial Water Filter Pleated Glass Fiber 10~50 Inch Long
Hydrophobic PTFE Industrial Water Filter Pleated Glass Fiber 10~50 Inch Long
Hydrophobic PTFE Industrial Water Filter Pleated Glass Fiber 10~50 Inch Long Hydrophobic PTFE Industrial Water Filter Pleated Glass Fiber 10~50 Inch Long Hydrophobic PTFE Industrial Water Filter Pleated Glass Fiber 10~50 Inch Long

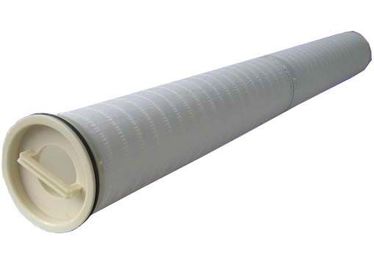

Large Image :  Hydrophobic PTFE Industrial Water Filter Pleated Glass Fiber 10~50 Inch Long

Product Details:
Place of Origin: CHINA
Brand Name: AIR
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Tray packaging
Delivery Time: around 2 weeks upon receipt signed&stamped PO
Payment Terms: T/T(negotiation)
Supply Ability: around 300 pcs per year

Hydrophobic PTFE Industrial Water Filter Pleated Glass Fiber 10~50 Inch Long

Description
Material: Glass Filter Normal Flow Direction Pressure:: Ction Pressure: 4.2 Bar (60.9 Psi) At 25℃ (77℉
Inner Diameter: 33 Mm(1.30'') Dia: 2.5inch,4.5inch
Length: 10~50 Inch Micron: 5um,1um,10um
High Light:

water filter cartridges

,

sediment filter cartridge

liquid filter cartridge PP PTFE PES absolute hydrophobic PTFE pleated Glass Fiber
Description:

PP Pleated Filter Cartridge cater to high efficiency filtration requirement. They are constructed of high purity polypropylene materials which increasing dirt holding capacity. The materials comply with FDA related requirement.The high surface area enable high flow rates and long service life. The series of cartridge with multiple layered microporous ensure stable performance and broad chemical compatibility.

Specifications

Material of Construction
aa Filter Media: Polypropylene
aa Support : Polypropylene
aa Core / Cage / End adaptor: Polypropyle

PP Pleated Filter Cartridge

Material of Construction

Filter Media: Polypropylene

Support : Polypropylene

Core / Cage / End adaptor: Polypropylene

Sealing Technology: Thermal bonding

Seal Material:Silicone,EDPM,Buna,Viton, Teflon,E-FKM

Micron Rating: 0.1µm, 0.22µm, 0.45µm, 0.65µm,0.80µm, 1µm, 3µm, 5µm, 10µm, 20µm, 50µm

Filtration Area: 0.5m2 each 10" length

Applications

Pre-filtration for RO system

Solvents, selected acids & lyes, chemical industry.

Semiconductor, Electronic industry ultrapure water system

Food and beverage

Oil and Gas industry.

Pharmaceutics

Paints, coatings and plating solutions

Dimensions

Outside diameter: 2.7” (69mm)

Length: 5", 10", 20", 30", 40"



liquid filter cartridge PP PTFE PES absolute hydrophobic PTFE pleated Glass Fiber

Construction Materials Filter Media GF
  Support Layers Polypropylene
  Inner core Polypropylene
  Outer cage, End Cap Polypropylene
  Seal Method Thermal Bonding, No Adhesives
  O-rings/ Gaskets Silicone/EPDM/Viton/PTFE/Nitrile
Technical Data Micron Rating 0.45, 1.0, 3.0,5.0, 10 um
  Operating Temperature

Normal <60℃ (140 oF)

Max. <85℃ (185 oF)

  Normal Flow Direction pressure 4.2 bar (60.9 psi) at 25℃ (77℉ )
  Reverse Flow Direction pressure 2.1 bar (30.5 psi) at 25℃ (77℉ )
  pH Value Compatibility 1-13
  Sterilization In-line steam sterilization is Not recommended, Flush with hot water at 82℃ (180 ℉ ) for 30 minutes
Cartridge Size Outer Diameter Φ 69 mm(2.75’’)
  Inner diameter Φ 33 mm(1.30’’)
  Length(based on DOE end cap) 10’’, 20’’, 30’’, 40’’
  Filtration Area(m2) 0.65 m2/10’’
Biosecurity Endotoxin <0.25 EU/ml
  Extractable ≤30 mg/10’’
Filtration efficiency ≥90%
Hydrophobic PTFE Industrial Water Filter Pleated Glass Fiber 10~50 Inch Long 0
Hydrophobic PTFE Industrial Water Filter Pleated Glass Fiber 10~50 Inch Long 1
