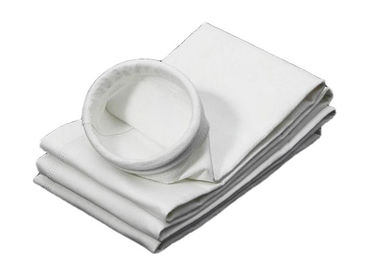

PTFE Non-woven Fabric & Bag Ultra Low Emission High Collecting Ratio Long Service Life Low Pressure Loss PTFE Filter Bag

Place of Origin CHINA
Brand Name Air
Minimum Order Quantity negotiation
Price negotiation
Packaging Details Poly Bag
Delivery Time around 3weeks upon receipt signed&stamped PO
Payment Terms T/T (negotiation)
Supply Ability around 300000pcs per year
Product Details
Application1 Steelmaking And Blast Furnaces Material Special Fiber Manufacture Technology PTFE
Application2 Ceramic Industry Shape Round
Efficiency 99.99% Application3 Incinerators
Application4 Fine Particle Transportation Advantages High Collecting Ratio;Low Pressure Loss;Long Serviec Life
High Light

dust collector bags

,

dust extractor filter bags

Leave a Message
Product Description

PTFE Non-woven Fabric & Bag Ultra Low Emission High Collecting Ratio Long Service Life Low Pressure Loss PTFE Filter Bag Description:

High-performance filter bag for waste incineration by ultra-fine PTFE fiber process introduction

Material (PTFE)
Commonly used maximum temperature 240℃
Instantaneous maximum temperature 260℃
Features Excellent resistance to chemicals and excellent water repellency and peelability. The production method differs greatly in strength and stretch.



High-performance filter bag for waste incineration by ultra-fine PTFE fiber

1.Features

*Using ultra-fine PTFE fiber on the surface, the average fiber diameter is only 10μm
*The filter material consists of a filter layer and a strength retaining layer
*The filter material is compounded by high-pressure water flow, and the filter layer is more dense than the conventional filter material.
*Filter principle using surface filtration



2.Dust collection performance

Because of the dense structure of the filter layer, especially for the collection of fine particles, it has an extremely high trapping property.



3.Differential pressure characteristic
Because of the microporous construction and high porosity of filter media, almost complete surface dust collection is achieved and the device operates at low differential pressures. At the same time, the number of pulses can be reduced, and the wear caused by the cleaning movement on the filter bag can be reduced, thereby prolonging the service life of the filter bag.



4.Durability
Our filter media has a soft filter layer of approximately 80 microns thick and excellent physical stress such as pulse cleaning.



5.Resistance, heat resistance
Our special filter media is made of 100% polytetrafluoroethylene fiber. It is resistant to liquid fluorine, chlorine trifluoride and molten alkali metal. It is resistant to all other chemicals and has good chemical stability and corrosion resistance. In addition, it has the best heat resistance among organic fibers, and the instantaneous use temperature can reach 260 °C.



6.Application

It is widely used in the treatment of incinerator waste gas at the beginning of incineration of municipal solid waste, and various other uses. In particular, a gasification melting furnace having a large number of fine particles has an extremely high evaluation in terms of an ash melting furnace, and has become an indispensable filter material.
