PPS Multi Sided Fiberglass Filter Bag Needle Felt Aramid Fiber Micron
| Place of Origin | CHINA |
|---|---|
| Brand Name | Air |
| Model Number | AR-FB |
| Minimum Order Quantity | negotiation |
| Price | negotiation |
| Packaging Details | Poly Bag |
| Delivery Time | around 3weeks upon receipt signed&stamped PO |
| Payment Terms | T/T (negotiation) |
| Supply Ability | around 300000pcs per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Diameter | 115 - 200 Mm | Material | Non-woven |
|---|---|---|---|
| Filtration Direction | Surface Filter | Standard Finish Options | Heat Set, Singed, Glazed |
| Dust Cleaning Type | Pulse Jet Clean | Length | 2000 - 9000mm |
| Working Temperature | 130 - 260 Degree | ProProduction Name | Dust Filter Bag |
| High Light | Multi Sided Fiberglass Filter Bag,Needle Felt Fiberglass Filter Bag,PPS Micron Filter Bag |
||
Product Description

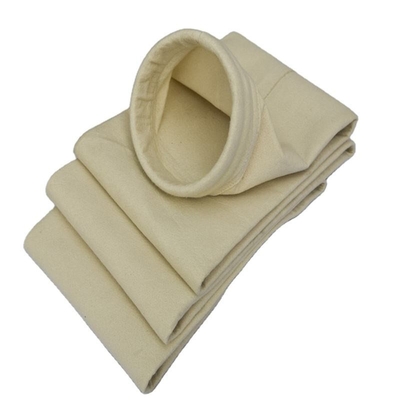

Needle Felt Aramid Fiber Micron PPS Multi-Sided Fiberglass Filter Bag
1) Different material: Polyester / PPS / Aramid / P84 / PTFE / Acrylic / FMS / Glasfiber / Antistatic etc
2) Finish treatment: Singeing / Calendering / Water&Oil repellent / PTFE dipping / Antistatic etc
3) Filter bag processing method: Sewing&Hot sealing
4) Filter bag size: Customize according to customer's requirement
5) Working temperature(℃): 150 - 500
6) Filtration effeciency(mg/nm³): 5 - 10
Dust filter bag
|
Item
|
500gsm polyester filter felt
|
|
Construction
|
Needle felt
|
|
Fibre Composition
|
Polyester
|
|
Scrim Composition
|
Polyester
|
|
Felt Area Weight
|
500g/m2(±5%)
|
|
Thickness
|
1.8-1.9mm
|
|
Mean Air Permeability
|
14-16 m3/m2/min 12.7mmH2O
|
|
Breaking Strength-MD(warp)
|
900 N / 5cm
|
|
Breaking Strength-CMD(weft)
|
1300 N / 5cm
|
|
Breaking Elongation( N/5cm)-MD(warp)
|
20%
|
|
Breaking Elongation( N/5cm)-CMD(weft)
|
39%
|
|
Dry Shrinkage MD(130℃warp)
|
＜1.5%
|
|
Dry Shrinkage CMD(130℃weft)
|
＜1.5 %
|
|
Operating Temperatures
|
<130 deg C
|
|
Recommended Maximum Continuous
|
150deg C
|
|
Recommended Maximum Surge
|
150deg C
|
|
Finish
|
Heat set, singed, calendared
|
Filter bag processing need attention
Description:INTRODUCTION
Filter bag is the core of the dust filter components. The filter bag has the strict requirements on design, filter material cutting, woven technology etc. These requirements are very important for the normal operation of the bag filter and convenient maintenance, and it is great significance to enlong the service life of the filter bag.
Structure and application
Filter bag are composed by woven filter material bag body and supported in role, snap ring, clamp, chain hoist, etc. The rest of the filter bag dust collector and its accessories are the venturi tube, frame, mouth of elastic ring, etc.
Specifications
The diameter of the filter bag is 115-200mm, length is 2000 - 9000mm, the specifications of the commonly used filter bag is 120 - 160 mm diameter, 2000 ~ 6000mm length.
Filter bag processing matters that should be paid attention:
After the selection of filter bag material and determine the specifications of the filter bag, we will process the filter bag as following attention matters:
(1) Precise design required size of the filter cloth for filter bag parts, the filter cloth will larger than the actual amount design size, to leave a spare for weaving.
(2) To choose the right filter bag accessories, specifications and check its quality. The filter bag accessories should match the filter bag quality requirements.
(3) We make the filter bag line drawing, cutting, sewing on automatic production line. When the filter bag need manual processing, we will open it on the operation platform, and with certain pulling force to keep it is flat.
(4) We keep the strict processing quality standards, according to design drawings and operation process. Our worker meet the requirements of tooling and clothing shoes and hats, no smoking.
(5) We have the responsible for the processing of products, and examines, waste, residue, defective goods in the beginning.
Asphalt industry homopolymer Polyacrylonitrile Acrylic filterbag Show:
